Here’s a list of all motorcycles with “cornering ABS”, a.k.a. an Internal Measurement Unit or IMU and lean angle-aware braking.

Lately I got really interested in “cornering ABS” that’s present on Ducati motorcycles.

Then I realised that “Cornering ABS” is just Ducati’s specific brand for a general concept which is to adjust the amount of braking to compensate for what the motorcycle is currently doing. And the good news is that there are increasingly many motorcycles — many of them much cheaper than new-ish Ducati motorcycles — that have lean angle-aware ABS.

Other names for cornering ABS are

  • Lean-angle sensitive ABS (my favourite generic term)
  • ABS Pro (BMW)
  • or just having an Internal Measurement Unit or IMU (which doesn’t always do the same thing — but usually does)
The IMU or Cornering ABS is a feature on most Ducati motorcycles, like this Panigale V4
The Ducati Panigale V4, equipped with Bosch Cornering ABS

An IMU is actually a word for a suite of measurement controls. It’s fed into a safety system that includes braking but also includes traction and wheelie control.

The various terms are almost synonymous because any motorcycle with lean angle-sensitive ABS has traction and wheelie control… though the converse is not true (there are many motorcycles with traction and wheelie control but without lean angle-sensitive ABS).

There are also motorcycles with an IMU but that don’t detect cornering. They may, for example, only measure the change of balance between the front and rear tyres.

Knowing cornering ABS exists on non-Ducati brands I thought… hey, maybe there are cheaper motorcycles with lean-angle sensitive ABS on them!

There still aren’t many motorcycles with cornering ABS though. So here are all the ones I’ve found.

Are you obsessed with motorcycles?

Well, I am. That’s why I created this site — as an outlet. I love learning and sharing what others might find useful. If you like what you read here, and you’re a fraction as obsessed as I am, you might like to know when I’ve published more. (Check the latest for an idea of what you’ll see.)

Why an IMU/Cornering ABS?

In a nutshell — I want to ride fast bikes and I want to live longer doing it. I like the freedom of the open road, but I don’t need to arrive with wrist pain and stress to enjoy that freedom.

ABS is often described as the greatest safety invention in the last twenty years (I can’t see reference for this, but it’s often said). ABS prevents wheels from locking up by detecting when they’ve done so and modulating brake pressure at high frequency.

Basically, when your wheel skids (even for a fraction of a fraction of a second), ABS releases the brakes, and then re-applies the brakes. It does this hundreds of times a second — meaning it works far better than you possibly can.

When you are going in a straight line and you grab a handful of the brakes, with ABS you stop very quickly — much more quickly than even if you used your hand.

The problem with ABS is that this also makes the motorcycle go upright. This puts you directly into the path of oncoming traffic, or other obstacles.

image from Bosch showing the different trajectories of ABS or lean angle sensitive ABS
Image from Bosch. The dotted line is where you’d go if you just hit the brakes with regular ABS. The solid line is where you should go, and where cornering ABS/lean angle-sensitive ABS tries to take you.

Lean-angle sensitive ABS adds to ABS by controlling the amount of braking depending on a number of factors including how far you’re leaning, whether you’re accelerating, and how fast you’re going.

The goal of lean angle-sensitive ABS is to brake you as quickly as possible without dramatically changing your direction.

The effect of a good braking system is that at any point in time you can just grab a handful of brakes and let the computer do the thinking.

Different names for Cornering ABS by different manufacturers

Kawasaki motorcycle with cornering ABS, called KCMF
The Kawasaki H2 ZX. They call cornering ABS “KCMF”.

Different motorcycle manufacturers have different names for cornering ABS. Let’s go through them! In alphabetical order:

Aprilia calls its system cornering ABS.

BMW calls it ABS Pro or ASC (Automatic Stability Control) in more recent (2019 onward) models. It was first available on the HP4 in 2013, but also became available for the 2012 BMW S1000RR.

Ducati calls their system Bosch Cornering ABS — although many other manufacturers also use Bosch systems. When it got upgraded to 6-axis, it became Bosch Cornering ABS Evo.

Harley-Davidson calls it Cornering Enhanced ABS (C-ABS). It’s part of their suite of Reflex™ Defensive Rider Systems (RDRS).

Honda calls their system just an IMU, saying they have either a 5-axis or 6-axis IMU.

Husqvarna uses Bosch Cornering ABS and refers to it as such.

Indian Motorcycles calls it “Smart Lean Technology” and “Wheelie Mitigation”.

Kawasaki calls their system the KCMF – the Kawasaki Cornering Management Function. It oversees many things, including braking.

KTM refers to it as Bosch’s MSC — Motorcycle Stability Control. It’s undoubtedly the same basic system as in other manufacturers with Bosch systems.

MV Agusta refers to their systems as a six-axis IMU and Continental cornering ABS.

Suzuki, like Honda, refers to their system as an IMU.

Triumph calls theirs Optimised Cornering ABS, not to be confused with all the others with crappy unoptimised cornering ABS.

Yamaha also calls their system an IMU, proudly calling it a 6-axis IMU.

Zero, like KTM, uses Bosch’s branding of Bosch MSC — Motorcycle Stability Control.

Riding Motorcycles with Cornering ABS

The best part of riding a motorcycle with a good IMU (and associated cornering ABS and traction control) is that you can, in theory, trust a computer and accelerate and brake as hard as you want.

That is… if the stability system is working.

An IMU frees you up from the stress of worrying about gravel, pitch angle, speed and so on, and lets you just brake when you think there is danger.

The effect of this is that you spend less mental energy riding and can go longer distances more safely, and arrive fresher. It’s a lot like cruise control in this respect.

Read next: A list of modern motorcycles with cruise control — the “unusual suspects”.

If you want a fully manual experience, go and get a classic motorcycle and stay in control. Get one without fairings and with a bare-bones engine. That’s an experience in itself.

But if you want to arrive fresh after a 12-hour ride (or even after a 1-hour race), get lean angle-sensitive ABS and whatever other electronics you can to help you.

Riding with an IMU is best when you change your riding style to suit. You trust the computer.

To accelerate, you can open the throttle and the front wheel will lift over every crest — but the anti-wheelie will bring it back down again.

To brake, you grab the brakes and the computer modulates the amount that you need, using as much braking power as is available to the motorcycle at any point. The effect is that to anyone but the most experienced of riders you get a shocking amount of grip and braking power, even in the wet, and even on slippery road.

You don’t have to warm up the tires or warm up mentally. Your only task is to keep off zero-grip surfaces where the computer can’t do anything — like ice. Or a lake.

On most motorcycles with an IMU you can adjust the intervention of the computer all the way down to zero. But many people get a rude surprise the first time they turn it off! Around race tracks, people always end up riding slower.

Motorcycles with Cornering ABS

Here’s the list of motorcycles I’ve found with cornering ABS. There may be one or two others out there. I’ve done a LOT of Googling for this. If you find another one, please contact me so I can add it to the list.

Aprilia Cornering ABS

2021 Aprilia RS660 with cornering ABS
2021 Aprilia RS660 with Cornering ABS

Aprilia has cornering ABS on the

  • 2017+ Aprilia RSV-4
  • 2017+ Aprilia Tuono V4
  • 2021 Aprilia RS660 — via a six-axis IMU
  • 2021 Aprilia Tuono 660 (as an optional IMU)

I really like that the RS660 and Tuono 660 (as an option) will both have an IMU and cornering ABS on middleweight motorcycles. Makes them very tempting propositions.

Looks like both the RS660 and Tuono 660 will have cruise control, too!

BMW ABS Pro/ASC

BMW HP4 Race with ABS Pro
BMW HP4 Race with ABS Pro

BMW was one of the earliest manufacturers with cornering ABS (what they call ABS Pro).

You can get ABS Pro on

  • 2009+ HP4
  • 2012+ S1000RR — thought it has to be retrofitted if it’s not on there (will cost you at least US$300 – depends on where you are)
  • 2015+ S1000RR as a factory option (or retrofitted)
  • 2015+ S1000 XR as factory option
  • 2016+ K1600 GT/GTL (standard)
  • 2016+ R1200GS, GSA (option)
  • 2017+ S1000R with Sport package (which is why I got one)
  • 2019+ R1250R
  • 2019+ F850GS and F750GS
  • 2020+ F900R
  • 2020+ F900XR, F900R SE/premium package (not the Australian F900R… sad face)
  • 2021+ R NineT range, including the more bare-bones R NineT Pure

Increasingly from 2019/2020 onward, a lot of the higher-end BMWs (basically all of them) have ABS Pro fitted. Even the 2021+ classic roadsters now have ABS Pro.

On some models, you have to opt for the “Dynamic package” or some similar up-spec package to get ABS Pro and other options.

Another similar term used in BMW motorcycles is ASC — Automatic Stability Control. It has a similar name, but ASC is more about limiting torque to prevent wheel-spin while accelerating rather than braking.

By the way, you may have heard of BMW Race ABS. It’s different to ABS Pro — here’s a quick explainer.

Ducati Cornering ABS Motorcycles

Ducati Monster 2021+ model — now with cornering ABS
The first smaller Ducati Monster to get cornering ABS is the 2021 model.

Ducati was another quite early manufacturer to fit cornering ABS to a lot of its models.

It’s available as standard on:

  • 2015+ 1299 Panigale
  • 2015+ Multistrada
  • 2016+ Diavel and XDiavel
  • 2017+ Monster 1200 + variants
  • 2018+ Scrambler 1100
  • 2019+: Nearly all new Ducati models* including the ones you’re about to tell me, like the Multistrada, Hyperstrada and Hypermotard 950, plus Scrambler models.
  • 2021 Ducati Monster and Monster Plus (the one replacing the 821)

That last line is important. Even the 2019 Ducati Scrambler has the full Bosch cornering ABS package on it! This makes Ducati Scramblers some of the highest safety per dollar motorcycles on the market.

* Some exceptions to the line-up: The entry-level Ducati Scrambler Sixty2 does not have cornering ABS, as didn’t the smaller Monsters like the 797 and 821, which were discontinued after 2020 and replaced with the regular “Ducati Monster”.

Harley-Davidson motorcycles with Cornering Enhanced ABS (C-ABS)

Harley-Davidson LiveWire — An electric motorcycle with cornering ABS

The Harley-Davidson LiveWire that I rode in early 2020 had cornering ABS. So I wondered whether any others in the line-up did… and yes, some do — starting from 2020!

Harley-Davidson C-ABS is standard on 2020 Harley-Davidson LiveWire. It’s also standard on all 2020+ CVO, Police and Trike models (I had to think for a bit why you’d need it on a trike), and optional on all 2020 Harley-Davidson Touring models in the U.S. (except the FLHT, a.k.a. Electra Glide).

The new motorcycles with the Revolution Max 1250 engine also come standard with cornering ABS. These include the:

Honda IMU-equipped motorcycles

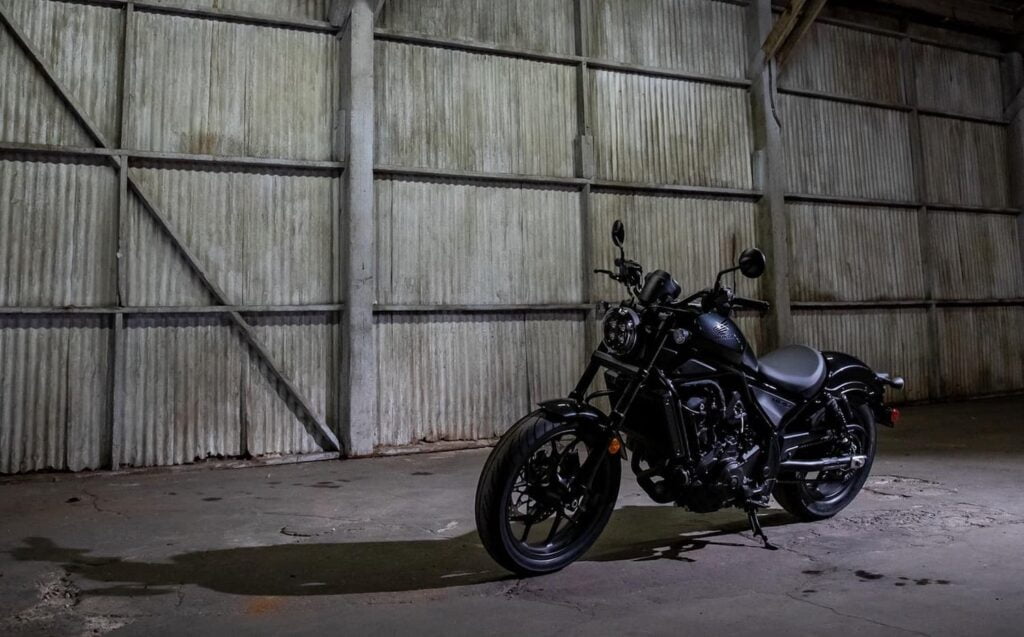

Honda rebel 1100 cruiser with cornering ABS
Honda Rebel 1100 — A 2021 cruiser with cornering ABS

Honda has only a few motorcycles with an IMU and cornering ABS fitted. (They have a couple more with an IMU, but no cornering ABS.)

  • 2017-18 Honda CBR1000RR – 5-axis IMU
  • 2019-20 Honda CBR1000RR-R, SP – a 6-axis IMU (I guess that’s the extra “R”!)
  • 2020+ CRF1100L Africa Twin
  • 2021+ Honda Rebel 1100 — a bobber-style motorcycle with cornering ABS!

A couple of cheaper Honda motorcycles, the 2018+ CB125R and CB300R and the 2020+ CBR300R, have an IMU but not cornering ABS. Their ABS just detects pitch, and modulates brake balance under dive conditions — it’s not quite cornering ABS.

Honda describes the smaller motorcycles’ IMU as follows: “Both brakes are modulated by two-channel ABS that works through an inertial measurement unit (IMU) to give precise front-to-rear distribution of ABS operation, depending on vehicle behavior.” (Source). Still, a great safety feature for rookies and low-speed stop-start traffic work.

It’s odd that the CB1000R and CB650R or CBR650R don’t have any kind of IMU given that those low-end motorcycles do. I’m sure that will change, so I’ll keep abreast of it.

The 2021 Honda CBR600RR will have cornering ABS too, making it the first 600-class motorcycle with it (other than the more street-friendly Aprilia RS660)

Husqvarna’s Bosch Cornering ABS-equipped motorcycles

Husqvarna is also in on the game with its Bosch cornering ABS feature.

Husqvarna motorcycles with cornering ABS include

  • 2020+ Husqvarna 701 Supermoto
  • 2020+ Husqvarna 701 Enduro (and LR)

It seems the Svartpilen and Vitpilen road bikes don’t have cornering ABS just yet, just entry-level Bosch 9M+ ABS, despite sharing the same 701 engine.

Indian motorcycles with Cornering ABS

FTR 1200 S with cornering ABS and Bosch IMU
2019 Indian FTR 1200 S

Indian has been doing great things since Polaris acquired them in 2011.

One of their recent successes is the flat tracker-inspired FTR range. The base model doesn’t have it, but the S and R models have a 6-axis Bosch IMU that informs ABS, traction control, and other ride systems.

Here are the models of Indian motorcycles with cornering ABS.

  • 2019+ Indian FTR 1200 S and R (not the base model, unfortunately). Indian calls it “wheelie mitigation”
  • 2020+ Indian Challenger (including Dark Horse)

Kawasaki KCMF-equipped motorcycles

You can get Kawasaki’s KCMF (Kawasaki Cornering Management Function) package on the following motorcycles:

  • 2017+ Ninja 1000/Z1000SX
  • 2017+ Ninja ZX-10R
  • 2017+ H2 SX (you’ll really need it on this!)
  • 2019+ Versys 1000 SE/LT

The Ninja 1000 is an affordable sport-touring motorbike that’s really feature-packed. The fact that it has cornering ABS at that price point is really amazing. And since 2020 it has even had cruise control! (See our complete buyers guide to the Kawsaki Ninja 1000.)

Still waiting for it to arrive to the ZX-6R 636 — not yet, even though it has a fairly advanced safety package.

KTM Bosch MSC-equipped motorcycles

2013 KTM Adventure R with Cornering ABS
2013 KTM 1190 Adventure R — One of the first with cornering ABS

KTM has their MSC package on the following motorcycles:

  • 2013 1190 Adventure R
  • 2014+ KTM 1290 Super Duke R
  • 2016+ Super Duke GT (1290 motor)
  • 2015+ 1290 Super Adventure R
  • 2019 KTM 690 SMC R
  • 2019 KTM 690 Enduro R
  • 2019 KTM 790 Duke
  • 2019 KTM 790 Adventure R
  • 2020 KTM 390 Adventure!

The 2020 KTM 390 Adventure is a new addition in 2020. It’s amazing that a budget-friendly machine can have lean-angle sensitive ABS! The IMU in a KTM 390 Adventure helps not just the braking, but also the traction control. Pretty impressive.

KTM's Adventure 390 with cornering ABS
KTM’s budget-friendly Adventure 390 has cornering ABS

The SMC R and the Enduro R have been around for a while, but they only got electronics in 2019.

The 2013 KTM 1190 Adventure R was one of the first motorcycles on the market with cornering ABS. This means it’s CHEAP! In fact, you can easily find these on the second-hand market with reasonable miles for under US$8,000.

MV Agusta motorcycles with an IMU and Cornering ABS

mv agusta superveloce with cornering abs
MV Agusta Superveloce 2021

MV Agusta started putting cornering ABS on their motorcycles in 2019, though they haven’t make much fanfare about it (it’s not core to the brand of “motorcycle art”, I suppose).

MV Agusta uses a six-axis IMU and a cornering ABS system from Continental. These are the MV Agusta motorcycles with cornering ABS (for now, all their triples):

  • 2019 Turismo Veloce — this was the first year their sport-touring (or adventure-touring) bike got cornering ABS
  • 2019 MV Agusta F3 — MV’s first supersport with cornering ABS
  • 2021 MV Agusta Brutale
  • 2021 MV Agusta Superveloce

Earlier models of MV Agusta had Bosch braking systems. Continental is the vendor for the cornering ABS systems though.

Suzuki motorcycles with an IMU

Suzuki first had an IMU on their 2017 V-Strom 1000 — but for braking only (i.e. it didn’t do launch or traction control). Worth mentioning, but if picking up a V-Strom 1000, go just one year later to 2018.

  • 2017+ GSX-R1000/R
  • 2018-19 Suzuki V-Strom 1000 and 1000 XT
  • 2020 Suzuki V-Strom 1050 and 1050 XT (in our opinion one of the best-looking motorcycles)
  • 2021+ Suzuki GSX1300R Hayabusa (the new model released mid-2021)

(Meanwhile the Suzuki M109R doesn’t even have ABS… but I still love the dang thing.)

Triumph motorcycles with Optimised Cornering ABS

Triumph has Optimised Cornering ABS on their high-end models pre-2019, and from 2020-on, even some mid-tier models.

  • 2017+ Tiger 1200 XR/XC/XCx/XCA (that’s the whole Tiger 1200 lineup)
  • 2017+ Speed Triple RS (not the S, nor the Street Triple)
  • 2019 Rocket 3
  • 2019+ Scrambler 1200 XE (not the XC, nor the Street Scrambler)
  • 2020+ Triumph Tiger 900 Rally, Rally Pro, GT and GT Pro (the mid- and top-tier end of the Tiger 900 range)

Yamaha motorcycles with a 6-Axis IMU

Yamaha 2016 anniversary edition with cornering ABS standard
2016 Yamaha R1 Anniversary edition – with cornering ABS standard

Yamaha motorcycles with a six-axis IMU and cornering ABS include:

  • 2015+ Yamaha R1 (YZF-R1)
  • 2021+ MT-09 (including the MT-09 SP)
  • 2021+ Yamaha Tracer 9 (a.k.a. the the former Tracer 900, a.k.a. MT-09 Tracer, a.k.a. the FJ-09)

Yamaha first introduced their six-axis IMU on one motorcycle — the 2015+ YZF-R1/R1M. Luckily the 2016 model in Anniversary Edition colours (pictured above) is one of my goals motorcycles. I will own you one day when your price is less stratospheric!

Until 2020, the R1 was the only Yamaha motorcycle with cornering ABS. Even the Yamaha MT-10 didn’t get have cornering ABS, even though it has other sweet electronics like cruise control. Otherwise, they’re very similar platforms.

But luckily, the revised 2021 Yamaha MT-09 — with an 890cc engine and increased output to 90 kW/120 hp (up from 86 kW/115 hp) — gets a full 6-axis IMU as well.

According to Yamaha, the new 2021 MT-09’s IMU gives input to traction control, slide control, and front-wheel lift. Separately in their section on braking, they say the braking system gets data from the IMU.

The 2021 MT-09 has two braking intervention modes — BC1 and BC2. The BC2 mode “controls the brake pressure in addition to ABS and operates in situations where machine behavior is likely to become unsettled, such as unavoidable panic braking mid-corner.”

2021 Tracer 9 GT with cornering ABS
2021 Tracer 900 GT with cornering ABS via a six-axis IMU

So yes, it appears that the 2021 MT-09 has lean-angle sensitive ABS, as does the Tracer 9 (the new name for the Tracer 900) — a phenomenal sport touring motorcycle.

Zero motorcycles with Bosch Cornering ABS

Zero SR/S with cornering ABS
The latest from Zero – the SR/S (with Cornering ABS from Bosch)

Zero first introduced Bosch Cornering ABS on their 2019 Zero SR/F (see my meta-review).

They also have Bosch cornering ABS on the 2020 Zero SR/S, a very similar motorcycle, but with a fairing (and better mileage/range).

Cheapest motorcycles with Cornering ABS

Out of all the above motorcycles, here are the very cheapest motorcycles with cornering ABS/IMU fitted:

  • 2020 KTM 390 Adventure: This is the only affordable new motorcycle with cornering ABS and traction control. Its MSRP is $6,199 in the US and A$8,999 in Australia, plus applicable on-road costs.
  • 2019+ Ducati Scrambler: You can get these on the road for about $10K
  • 2012+ BMW S1000RR — you can get these used for about $10K — make sure it has ABS Pro fitted
  • 2013 KTM 1190 Adventure: you can find them used for $8-9K, but there aren’t many around

Good hunting!

Similar Posts

17 Comments

  1. Harley still makes you pay for safety. All this tech should be standard. 2012 stability control was mandated in all USA vehicles. USA always the last to add safety regulations

  2. Not all Ducati 2019+ models have cornering ABS (disregarding the small scrambler). For example, the Supersport only gets cornering ABS this year 2021 (Supersport 950)
    I believe most monsters also don’t have it

      1. I have 2020 Monster 821. My manual booklet explains that there is a cornering function in the ABS. When I asked Ducati HQ about it, he said that you can refer to the manual.
        However, there are no IMU sensors.
        What’s interesting is that only some of the 2020 Monster 821 buyers have this description in the manual booklet.

        1. This IS interesting and confusing. I don’t understand. I also found this in the manual (downloaded it) — you’re 100% right. None of the press releases mentioned it. It’s either a feature not mentioned by anyone, or it’s a miscommunication in the manual. I’ll write to Ducati to figure it out.

          1. I don’t have any mechanical knowledge, but I don’t know if it’s possible to implement cornering functions by making an abs module without IMU sensor.
            Given that they used the word ‘widens’ in the manual, I think it means that they can add an additional IMU sensor module. (I’m not an English speaker, so it’s hard to figure out the exact meaning.)

  3. This most-excellent list has an entry for “2018-19 Suzuki V-Strom 1000 XT“. To me, this makes it look like only the 1000XT has corner braking assisted via an IMU. From what I have read and from your comment just before the Suzuki list about the 2017 vs 2018 model, it seems like the base V-Strom 1000 for those years also has the same functionality.

  4. Thanks, as i’m looking for a motorcycle this is a nice overview,
    because Cornering-abs is a must-have for me.

  5. What is the source for the Rebel 1100 having cornering abs? Honda’s website does not mention it and motorcycle.com’s review says it does not have cornering abs.
    If that’s the case, that sucks.

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
